YLB-013GY



1.Product introduction

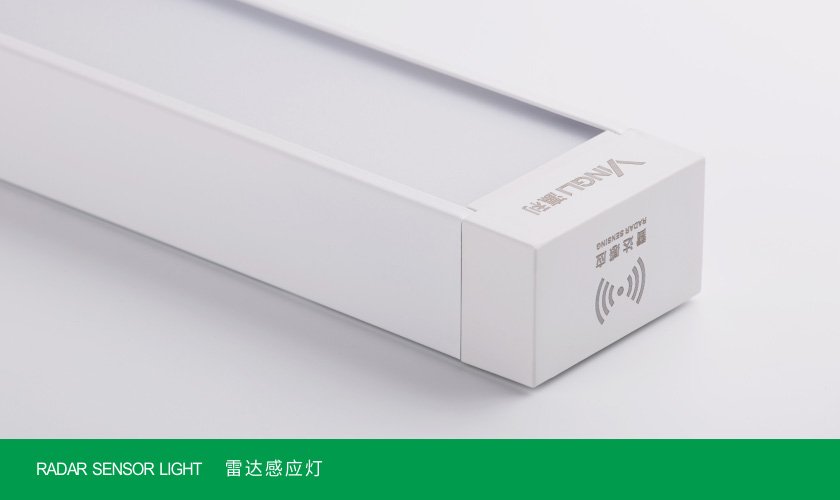

This is one of our intelligent control lamps, mainly used in places where the lamp has adaptive energy-saving requirements. The lamp is equipped with radar sensor, which automatically turns on the light when it enters the sensing area. When the person leaves the sensing area, it automatically drops to a slight light, providing appropriate low-brightness illumination.

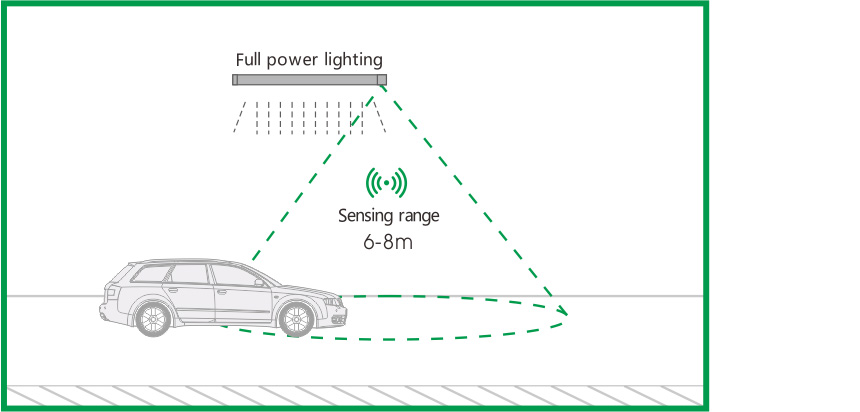

Within the sensing range

When the moving object is sensed to enter the sensing range, the lamp is fully powered;

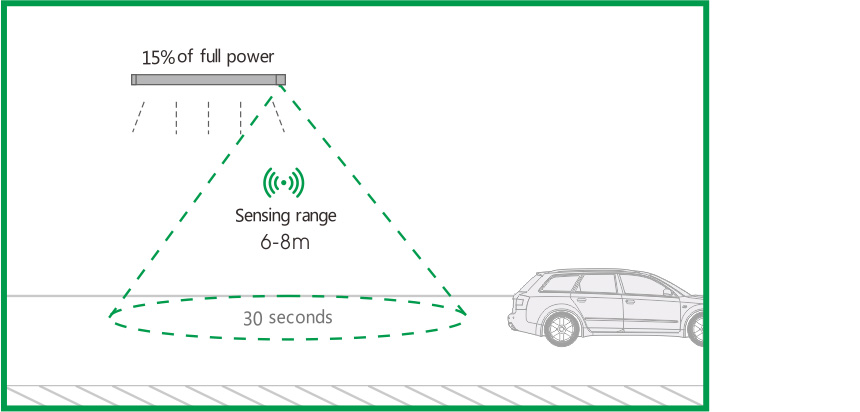

Outside the sensing range

When the moving object leaves the sensing range for 30 seconds, the brightness of the light drops to 15%.




2.Applications

Offices, hospitals, garages, museums, etc., where automatic lighting is required.



3. Specification

TypeModelFeaturesProduct width
Intelligent regulationYLB-013GYRadar induction70mm
PowerLuminous  fluxColor temperatureCRI
28W2240Lm3000K/4000K/6500KRa≥80
VoltageVoltageMaterialFinishing
220-240V1180x70x40mmAluminum&PSSpraying/oxidation
ColourStitching or not

Black/White/Silver/CustomX



4.Installation and accessories




5.Reference Case

Application of Zhengzhou Underground Garage-Regional Lighting



6.Matters needing attention in the use of products

(1) Avoid 1 set of switch control too many lamps, it is recommended every 1A/1 lamp, for example: 16A air switch control 16 lamps.


(2) For the first time, it is strongly recommended that all switches be in the off state, then turn on the lamp switch test one by one, and the lamp will be turned off abnormally immediately to avoid large-area failure.


(3) Avoid storing or using lamps in a humid, acid, alkali or sulfur environment.


(4) Changing the lamp board or pulling out the connection wire of the lamp board will cause the lamp chip to be damaged when the power is on.
